Mobile Welding Fume Extractor 500 m³/h, Manual – FAON FDYD-3P
FAON FDYD-3P — 300 W motor, 500 m³/h airflow and 0.3 μm filtration. Built for single-station MIG/MAG, TIG and arc welding, and light cutting and grinding.
Features
- Multi-stage high-efficiency filtration
- 0.3 μm filtration, ≥99.9% efficiency
- Manual filter cleaning
- Mobile on lockable castors — rolls to the arc, no ductwork
- Clean air recirculated indoors — no heat loss in winter
FDYD-3P — Mobile Welding Fume Extractors
The FAON FDYD-3P is a mobile welding fume extractor built for single-station welding, cutting and grinding. Mounted on heavy-duty lockable castors with a push handle, it rolls straight to the job — no ductwork, no installation, no heat loss from extracting air outdoors.
Fume is captured at source through a 360° flexible extraction arm before it reaches the operator’s breathing zone. Air then passes through a multi-stage filter system using multi-stage high-efficiency filtration media, delivering 0.3 μm filtration accuracy and ≥99.9% efficiency at 0.3 μm.
The 300 W motor runs on 220 V / 50 Hz and moves 500 m³/h of air. Cartridge cleaning is manual.
Key features
- 300 W motor delivering 500 m³/h airflow
- 0.3 μm filtration accuracy, ≥99.9% efficiency at 0.3 μm
- Multi-stage high-efficiency filtration
- Manual filter cleaning
- Mobile on lockable castors with a 360° flexible extraction arm for true at-source capture
Technical specifications
| Model | FDYD-3P |
|---|---|
| Motor Power | 300 W |
| Working Voltage | 220 V / 50 Hz |
| Air Volume | 500 m³/h |
| Filtration Efficiency | ≥99.9% at 0.3 μm |
| Filter Material | Multi-stage high-efficiency filtration |
| Cleaning Mode | Manual |
| Noise Level | 65±3 dBA |
| Dimensions | 560×430×430 mm |
| Weight | 20±3 kg |
Typical applications
Single-station MIG/MAG, TIG, arc and spot welding; plasma and laser cutting; light grinding and polishing; fabrication, steelwork, automotive repair and jobbing shops.

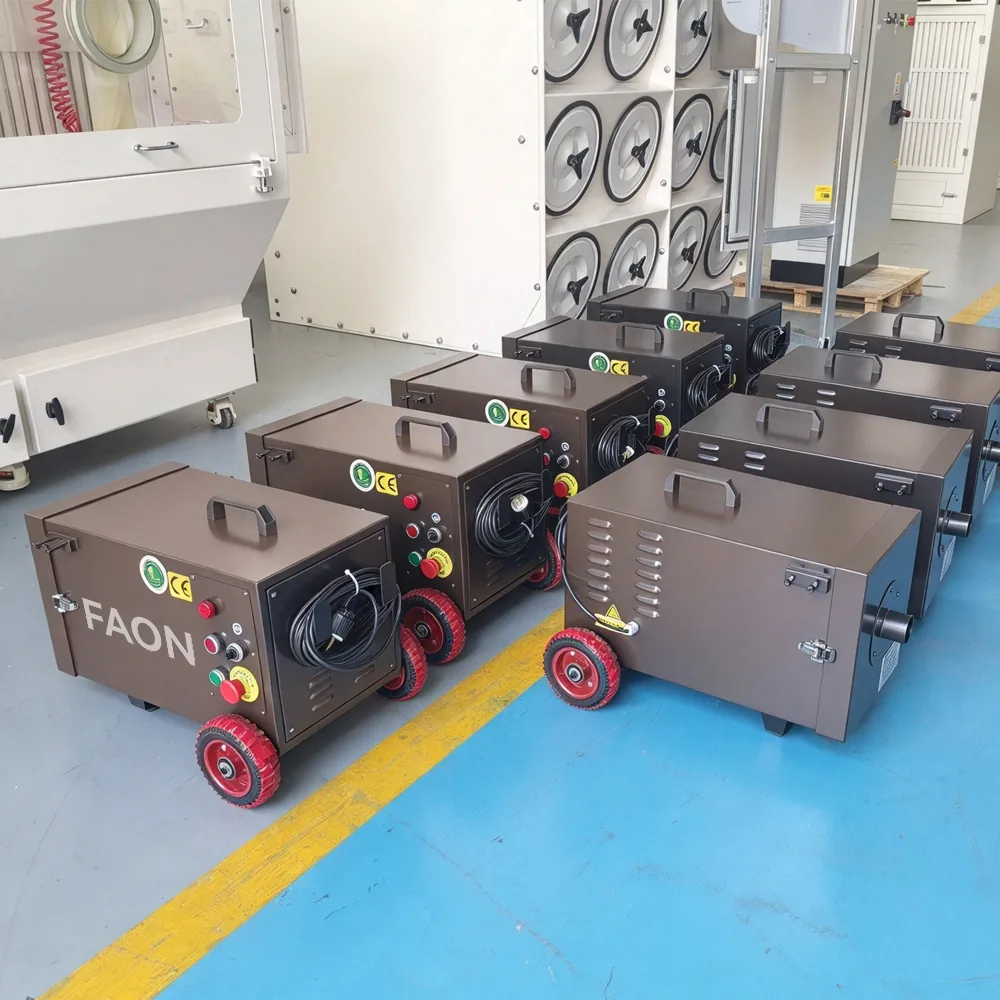

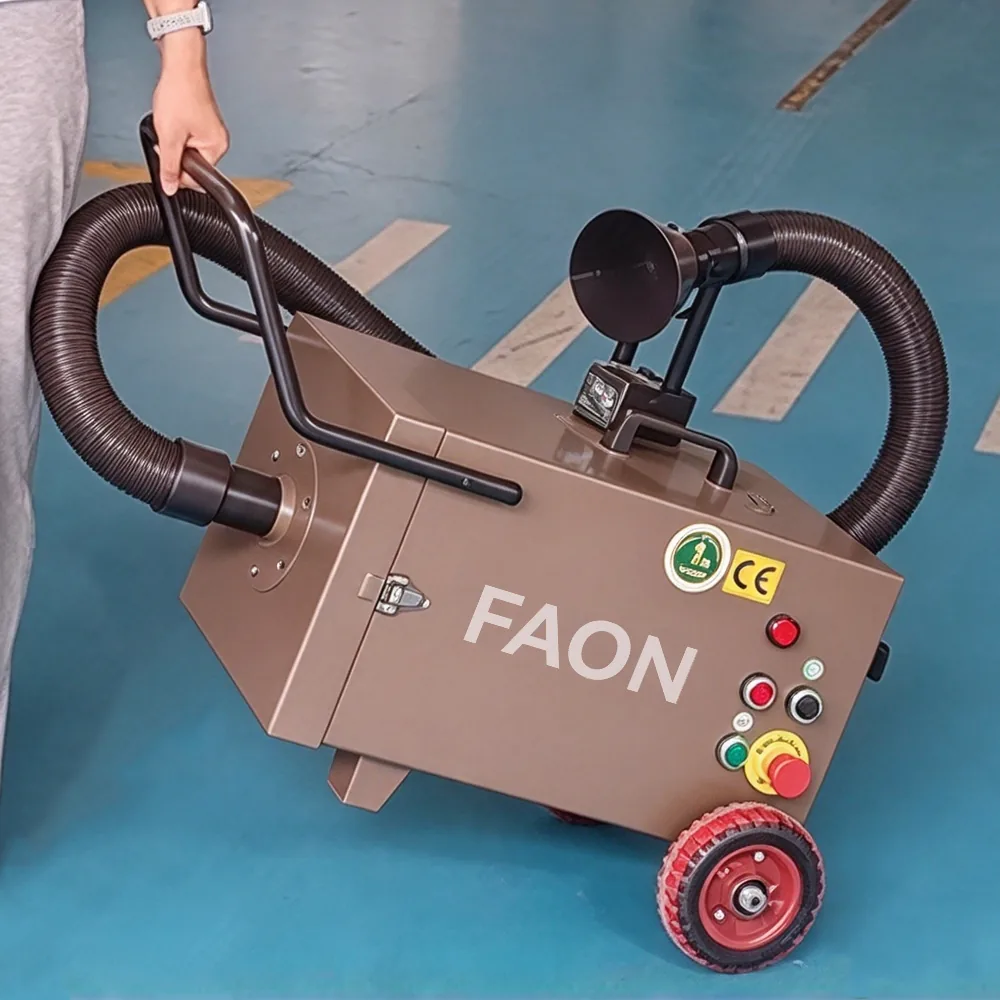

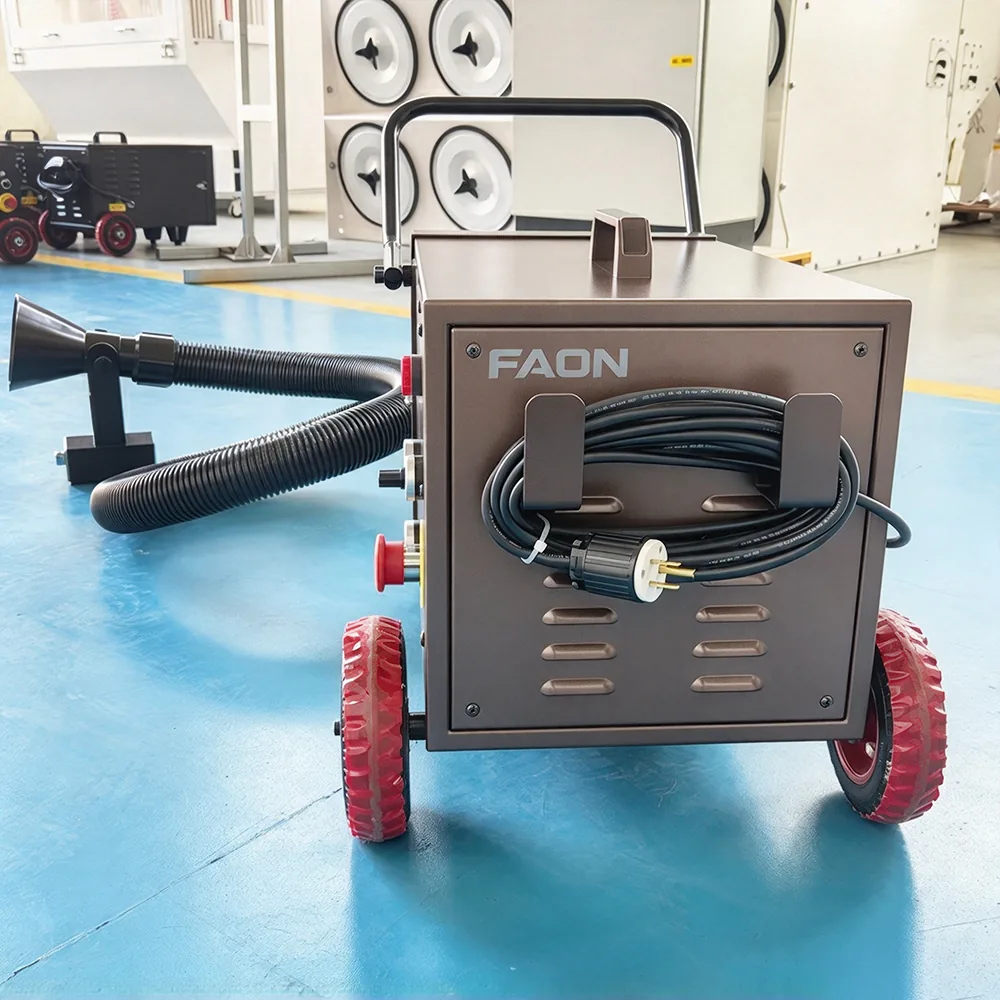

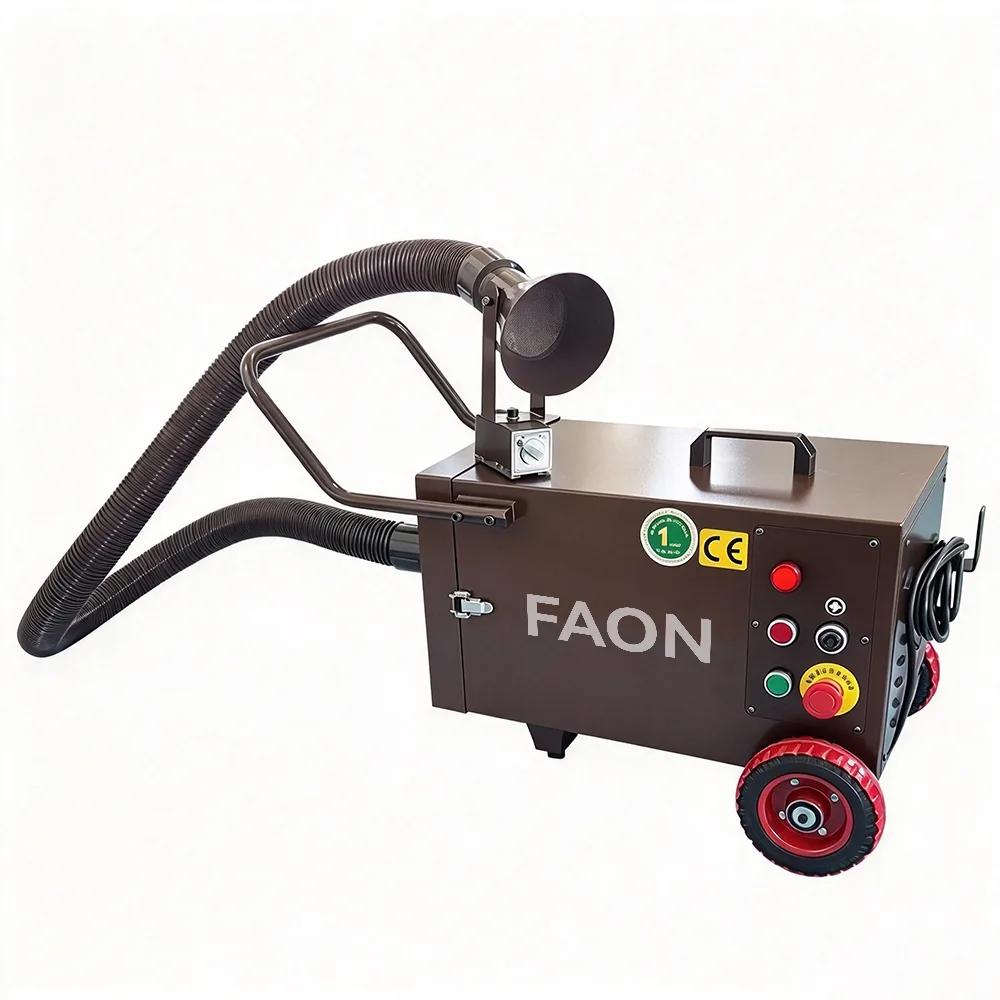

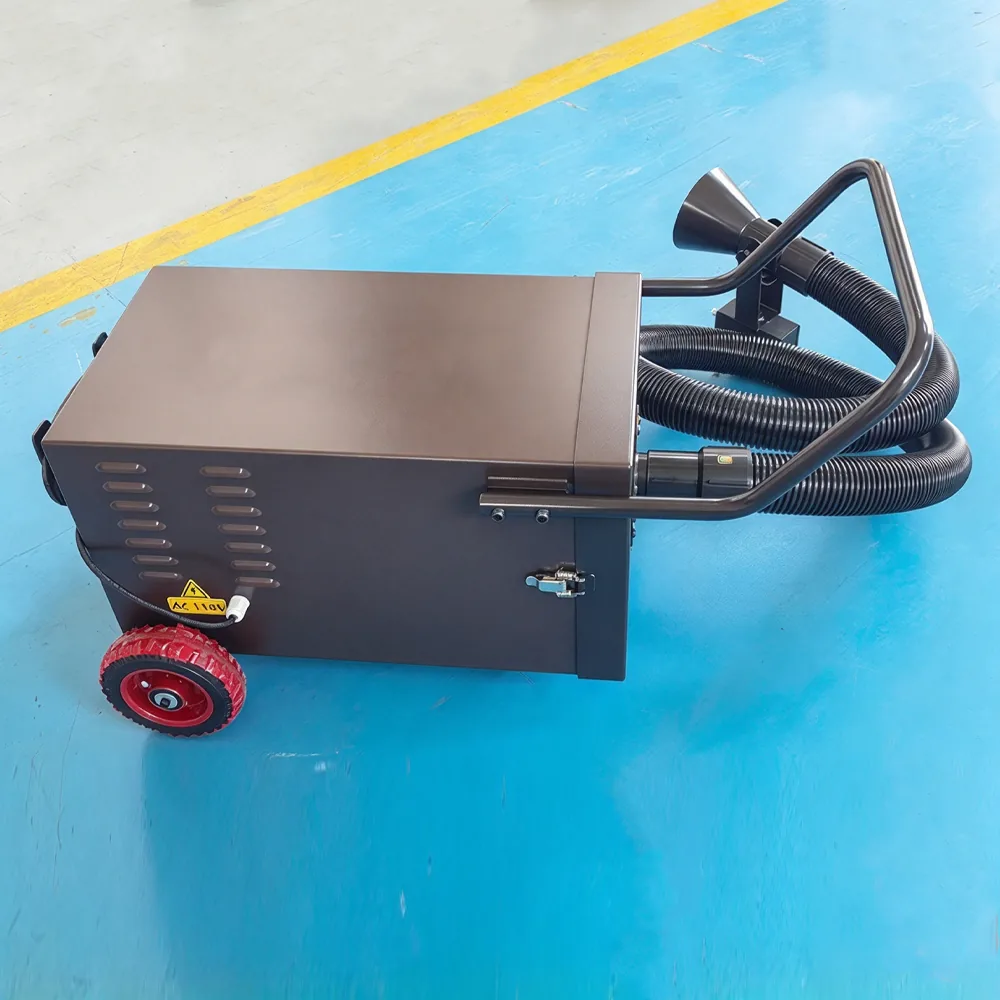

Product pictures
